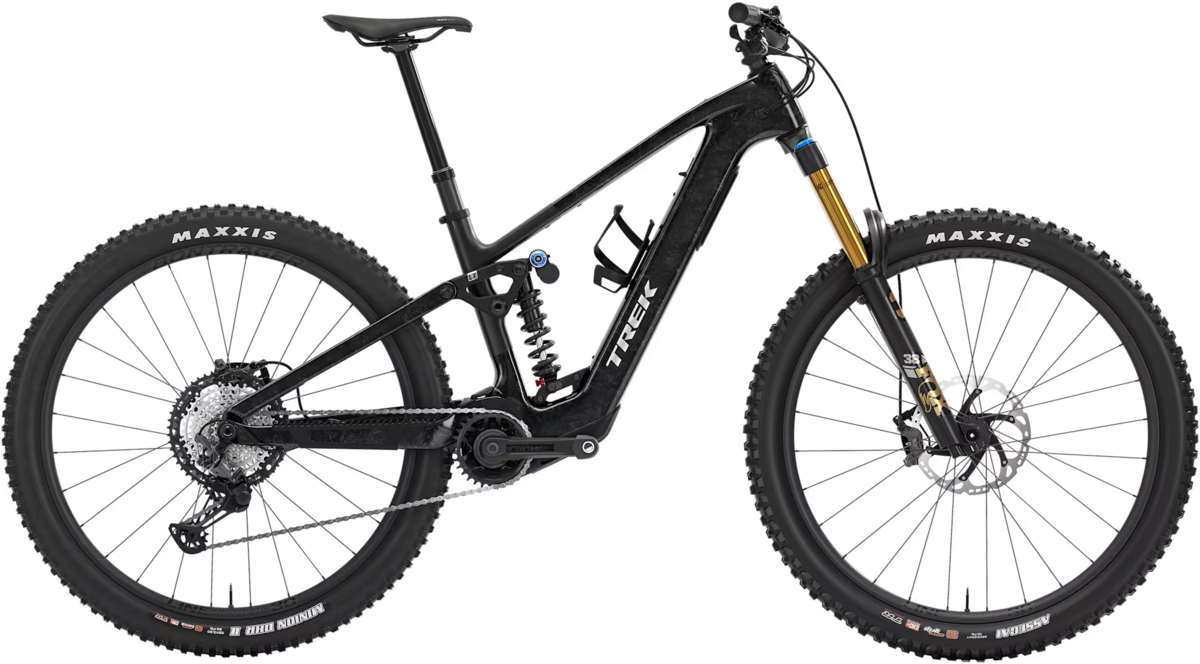

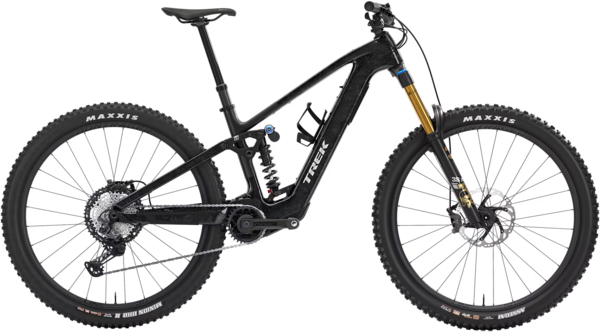

Trek Fuel+ LX 9.8 XT Gen 2

Trek Fuel+ LX 9.8 XT Gen 2
  • Color: Carbon Smoke/Lithium Grey Marble
  • Color: Gloss Navy Smoke/Matte Trek Black
  • Color: Lichen Green/Keswick Green Splatter
$12,799.99
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently not available. Give us a call for updated information and alternatives. Evolution Cycles: 905-737-8415

Details

Fuel+ LX 9.8 XT is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.

Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs

*All measurements provided in cm unless otherwise noted.

Sizes:
SizeSmallMediumLargeX-LargeXX-Large
Wheel size 29" 29" 29" 29" 29"
A — Seat tube 37 40 42 45.5 47.5
B — Seat tube angle 71.5° 71.5° 71.5° 71.6° 71.6°
Effective seat tube angle 77.0° 76.7° 76.3° 75.9° 75.4°
C — Head tube length 11 11 12.5 14 15.5
D — Head angle 63.4° 63.4° 63.4° 63.5° 63.5°
E — Effective top tube 56.3 59.3 62.2 65.5 68.4
F — Bottom bracket height 34.7 34.7 34.7 34.6 34.6
G — Bottom bracket drop 2.6 2.7 2.7 2.7 2.7
H — Chainstay length 44.4 44.4 44.4 44.7 45.2
I — Offset 4.4 4.4 4.4 4.4 4.4
J — Trail 13.8 13.8 13.7 13.7 13.7
K — Wheelbase 121.3 124.3 127.5 131 134.1
L — Standover 76.3 75.7 76 76.4 77.3
M — Frame reach 41.8 44.8 47.3 49.8 51.8
N — Frame stack 63.3 63.3 64.7 66.1 67.4
Sizes:
SizeRider HeightInseam
Small 155 - 165 cm / 5'1" - 5'5" 74 - 78 cm / 29" - 31"
Medium 165 - 177 cm / 5'5" - 5'10" 79 - 83 cm / 31" - 33"
Large 177 - 188 cm / 5'10" - 6'2" 84 - 89 cm / 33" - 35"
X-Large 188 - 195 cm / 6'2" - 6'5" 89 - 91 cm / 35" - 36"
XX-Large 195 - 203 cm / 6'5" - 6'8" 91 - 97 cm / 36" - 38"

Specs

Frame OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
Rear Shock Fox DHX2, 205mm x 65mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Tires Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Rear: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Crankset E*thirteen E*spec Plus, 160mm length
Chainrings E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Shifters Shimano XT M8100, 12 speed
Rear Derailleur Shimano XT M8100, long cage
Cassette/Freewheel Shimano XT M8200, 10-51, 12 speed
Chain Shimano Ultegra/XT M8100, 12 speed
Brakes Shimano XT M8200 4-piston hydraulic disc
Rotors Shimano RT86, 6-bolt, 203mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Tape/Grips Trek Line Elite, lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Seatpost Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: XL, L, XXL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
Saddle Verse Short Comp, steel rails, 145mm width
Pedals Sold Separately
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 580Wh
Controller/Display TQ color LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Carbon Smoke/Lithium Grey Marble / Small / 29-inch 197216279778 5340913 FUE451840822
Carbon Smoke/Lithium Grey Marble / Medium / 29-inch 197216279785 5340914 FUE457260102
Carbon Smoke/Lithium Grey Marble / Large / 29-inch 197216279792 5340915 FUE45276102
Carbon Smoke/Lithium Grey Marble / X-Large / 29-inch 197216279808 5340916 FUE466726042
Carbon Smoke/Lithium Grey Marble / XX-Large / 29-inch 197216279815 5340917 FUE472634732
Gloss Navy Smoke/Matte Trek Black / Small / 29-inch 197216279877 5340923 FUE453232552
Gloss Navy Smoke/Matte Trek Black / Medium / 29-inch 197216279884 5340924 FUE454108302
Gloss Navy Smoke/Matte Trek Black / Large / 29-inch 197216279891 5340925 FUE454203082
Gloss Navy Smoke/Matte Trek Black / X-Large / 29-inch 197216279907 5340926 FUE469670112
Gloss Navy Smoke/Matte Trek Black / XX-Large / 29-inch 197216279914 5340927 FUE478552952
Lichen Green/Keswick Green Splatter / Small / 29-inch 197216279822 5340918 FUE484048742
Lichen Green/Keswick Green Splatter / Medium / 29-inch 197216279839 5340919 FUE48344062
Lichen Green/Keswick Green Splatter / Large / 29-inch 197216279846 5340920 FUE48473722
Lichen Green/Keswick Green Splatter / X-Large / 29-inch 197216279853 5340921 FUE494576782
Lichen Green/Keswick Green Splatter / XX-Large / 29-inch 197216279860 5340922 FUE509366662
