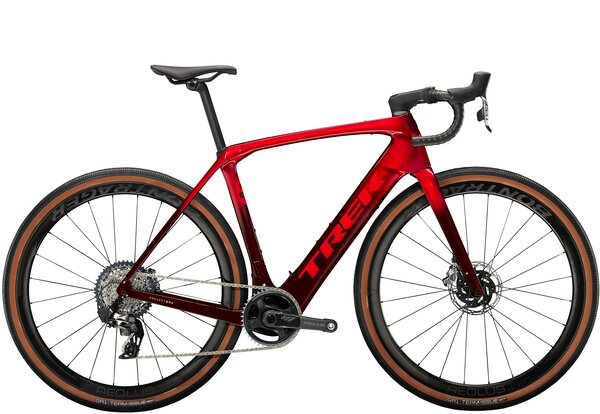

Trek Domane+ SLR 9 eTap
Details
Domane+ SLR 9 is a category-redefining, high-speed assist carbon e-road bike that doesn't look, fit, or feel like a standard e-bike. It's built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride with natural-feeling assist. The motor quietly blends in with the elements, all but disappearing under you on peaceful solo spins and club rides, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. Adding the cherry on top, it's equipped with the industry's most premium parts, like SRAM's best wireless electronic drivetrain-RED eTap AXS.
- The TQ harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet, and offers a powerful assist up to 32 km/h
- The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional road bike
- Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
- On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
- It comes equipped with SRAM's top-tier adventure-ready 1x wireless RED eTap AXS drivetrain and 40mm gravel tires for loose conditions
| Frame Size | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube (cm) | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length (cm) | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| D — Head angle | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| E — Effective top tube (cm) | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| G — Bottom bracket drop (cm) | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| H — Chainstay length (cm) | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| I — Offset (cm) | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| J — Trail (cm) | 6.3 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 | 6.2 |
| K — Wheelbase (cm) | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 103.7 | 104.7 |
| L — Standover (cm) | 72.8 | 74.7 | 76.6 | 78.8 | 80.8 | 82.9 | 84.7 |
| M — Frame reach (cm) | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| N — Frame stack (cm) | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Stem length (cm) | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
| Saddle rail height min (w/short mast) (cm) | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) (cm) | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Saddle rail height min (w/tall mast) (cm) | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
| Saddle rail height max (w/tall mast) (cm) | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 50 | 5'2" - 5'4" | 29" - 30" |
| 52 | 5'4" - 5'6" | 30" - 31" |
| 54 | 5'6" - 5'9" | 31" - 32" |
| 56 | 5'9" - 5'11" | 32" - 33" |
| 58 | 5'11" - 6'1" | 33" - 34" |
| 60 | 6'1" - 6'3" | 34" - 35" |
| 62 | 6'3" - 6'5" | 35" - 36" |
Specs
| Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
|---|---|
| Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels |
Front: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle Rear: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Axles | Bontrager Switch thru axle, removable lever |
| Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c |
| Crankset |
Size: 50, 52 - Praxis Carbon, 170mm length Size: 54, 56 - Praxis Carbon, 172.5mm length Size: 58, 60, 62 - Praxis Carbon, 175mm length |
| Chainrings | SRAM X-SYNC, 42T, alloy |
| Shifters | SRAM RED eTap AXS, 12 speed |
| Rear Derailleur | SRAM RED XPLR eTap AXS, 44T max cog |
| Cassette/Freewheel | SRAM XG-1271, 10-44, 12 speed |
| Chain | SRAM RED D1, 12 speed |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm; Max brake rotor sizes: 180mm front, 160mm rear |
| Handlebars |
Size: 50, 52 - Bontrager Pro IsoCore VR-SF, 40cm Size: 54, 56 - Bontrager Pro IsoCore VR-SF, 42cm Size: 58, 60, 62 - Bontrager Pro IsoCore VR-SF, 44cm |
| Tape/Grips | Bontrager Supertack Perf tape |
| Stem |
Size: 50 - Bontrager RCS Pro, -7 degree, 80mm length Size: 52, 54 - Bontrager RCS Pro, -7 degree, 90mm length Size: 56, 58 - Bontrager RCS Pro, -7 degree, 100mm length Size: 60, 62 - Bontrager RCS Pro, -7 degree, 110mm length |
| Seatpost |
Size: 50, 52, 54, 56 - Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length Size: 58, 60, 62 - Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length |
| Saddle |
Size: 50, 52 - Bontrager Verse Short Pro, carbon rails 155mm width Size: 54, 56, 58, 60, 62 - Bontrager Verse Short Pro, carbon rails, 145mm width |
| Pedals | Sold separately |
| Accessories & Extras |
Size: 50, 52, 54, 56, 58, 60, 62 - TQ 4A charger Size: 50, 52, 54, 56, 58, 60, 62 - SRAM AXS aux power cable |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| Battery | TQ 360Wh |
| Controller/Display | TQ LED display with Bluetooth & ANT+ connectivity |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Carbon Red Smoke / 50cm | 768682683965 | 5311488 | DOM32370158E |
| Carbon Red Smoke / 52cm | 768682683941 | 5311489 | DOM32447290E |
| Carbon Red Smoke / 54cm | 768682684023 | 5311490 | DOM3256546E |
| Carbon Red Smoke / 56cm | 768682683927 | 5311491 | DOM32161362E |
| Carbon Red Smoke / 58cm | 768682683866 | 5311492 | DOM32697764E |
| Carbon Red Smoke / 60cm | 768682700747 | 5311493 | DOM32638657E |
| Carbon Red Smoke / 62cm | 768682701126 | 5311494 | DOM32536589E |
| Crystal White / 50cm | 768682683842 | 5311481 | DOM30762718E |
| Crystal White / 52cm | 768682684160 | 5311482 | DOM30638454E |
| Crystal White / 54cm | 768682683828 | 5311483 | DOM3044001E |
| Crystal White / 56cm | 768682683880 | 5311484 | DOM3085854E |
| Crystal White / 58cm | 768682683781 | 5311485 | DOM30608892E |
| Crystal White / 60cm | 768682683989 | 5311486 | DOM30238457E |
| Crystal White / 62cm | 768682684108 | 5311487 | DOM30239392E |
| Deep Smoke / 50cm | 768682684146 | 5311474 | DOM27838984E |
| Deep Smoke / 52cm | 768682683804 | 5311475 | DOM27811442E |
| Deep Smoke / 54cm | 768682684184 | 5311476 | DOM27756619E |
| Deep Smoke / 56cm | 768682683767 | 5311477 | DOM27919744E |
| Deep Smoke / 58cm | 768682684061 | 5311478 | DOM27446092E |
| Deep Smoke / 60cm | 768682684085 | 5311479 | DOM27134446E |
| Deep Smoke / 62cm | 768682683903 | 5311480 | DOM27746756E |
| Juniper / 50cm | 768682700921 | 5311502 | DOM25938169R |
| Juniper / 52cm | 768682700761 | 5311503 | DOM25272371R |
| Juniper / 54cm | 768682700822 | 5311504 | DOM25336148R |
| Juniper / 56cm | 768682701003 | 5311505 | DOM25799263R |
| Juniper / 58cm | 768682701102 | 5311506 | DOM25850003R |
| Juniper / 60cm | 768682701201 | 5311507 | DOM25145635R |
| Juniper / 62cm | 768682700846 | 5311508 | DOM25932302R |
| Mercury / 54cm | 768682701041 | 5311497 | DOM25698187Y |
